BackupX/README_EN.md

English | 中文

BackupX

Self-hosted Server Backup Management Platform
One binary, one command — manage all your server backups.

---

Highlights

Capability	Details
Backup Types	Files/Directories (multi-source), MySQL, PostgreSQL, SQLite, SAP HANA (full / incremental / differential / log backups + parallel channels + retry)
SAP HANA Backint Agent	Built-in SAP HANA Backint protocol agent — HANA's native backup interface can route data directly to any storage backend supported by BackupX
70+ Storage Backends	Built-in Alibaba OSS / Tencent COS / Qiniu / S3 / Google Drive / WebDAV / FTP + 70+ backends via rclone (SFTP, Azure Blob, Dropbox, OneDrive, etc.)
Scheduling	Cron-based + visual editor + auto-retention policy (by days/count, auto empty directory cleanup)
Multi-Node	Master-Agent cluster for managing backups across multiple servers with remote directory browsing and node editing
Security	JWT + bcrypt + AES-256-GCM encrypted config + optional backup encryption + comprehensive audit logs
Notifications	Email / Webhook / Telegram — push on success or failure
Deployment	Single binary + embedded SQLite, Docker one-click, zero external dependencies

---

Quick Start

1. Install

Docker (recommended, no clone needed):

# Create a docker-compose.yml then start
docker compose up -d

# Or run directly
docker run -d --name backupx -p 8340:8340 -v backupx-data:/app/data awuqing/backupx:latest

Docker Hub: awuqing/backupx — supports linux/amd64 and linux/arm64.

docker-compose.yml reference

services:
  backupx:
    image: awuqing/backupx:latest
    container_name: backupx
    restart: unless-stopped
    ports:
      - "8340:8340"
    volumes:
      - backupx-data:/app/data
      # Mount host directories to back up (add as needed):
      # - /var/www:/mnt/www:ro
      # - /etc/nginx:/mnt/nginx-conf:ro
    environment:
      - TZ=Asia/Shanghai

volumes:
  backupx-data:

Pre-built binaries (bare metal):

Download from Releases:

tar xzf backupx-v*-linux-amd64.tar.gz && cd backupx-*
sudo ./install.sh        # Auto-configures systemd + Nginx

Build from source:

git clone https://github.com/Awuqing/BackupX.git && cd BackupX
make build               # Build frontend + backend
make docker-cn           # Or Docker build with China mirrors (goproxy.cn / npmmirror / Aliyun apk)

2. Open the Console

Visit http://your-server:8340 in your browser. First-time access guides you through admin account creation.

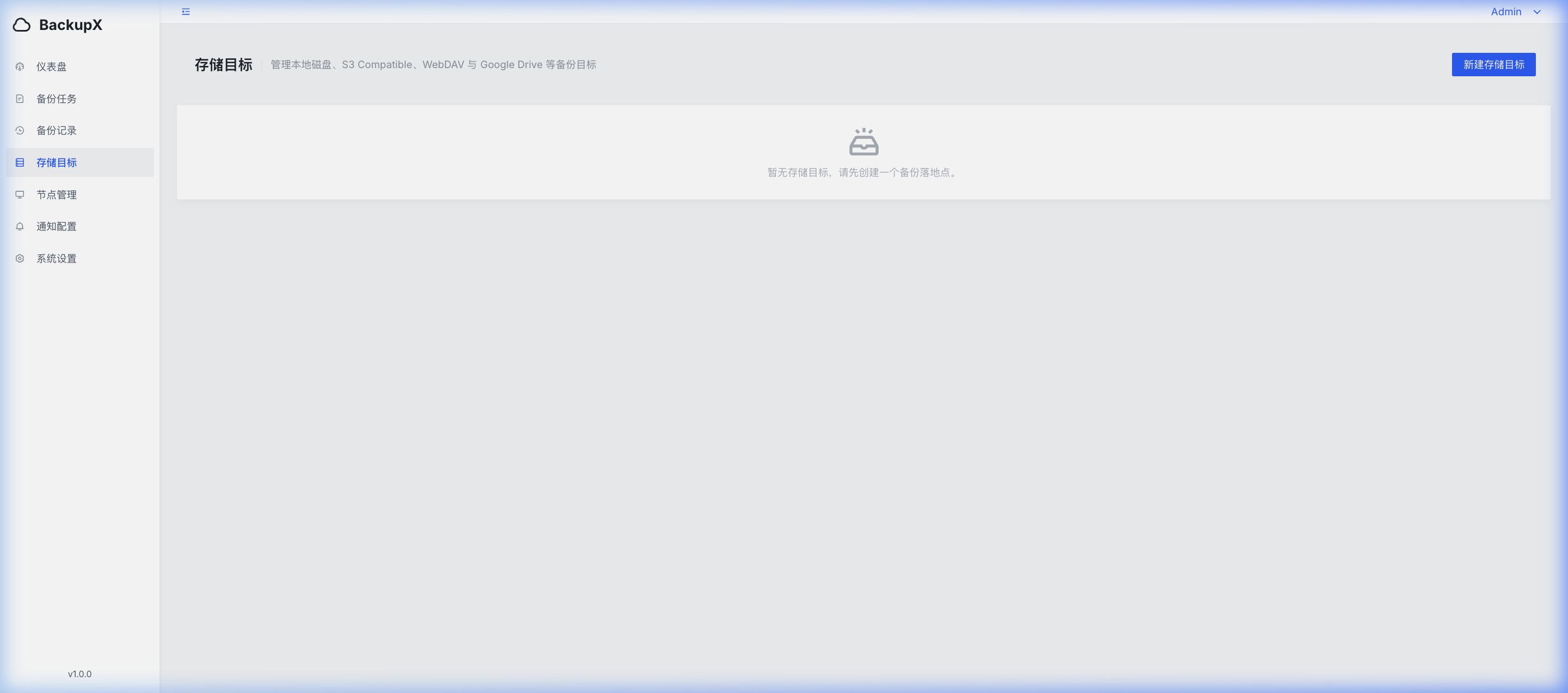

3. Add a Storage Target

Go to Storage Targets → Add, choose a storage type and enter credentials:

Storage Type	Required Fields
Alibaba Cloud OSS	Region + AccessKey ID/Secret + Bucket
Tencent Cloud COS	Region + SecretId/SecretKey + Bucket (name-appid)
Qiniu Cloud Kodo	Region + AccessKey/SecretKey + Bucket
S3 Compatible	Endpoint + AccessKey + Bucket
Google Drive	Client ID/Secret → click Authorize for OAuth
WebDAV	Server URL + Username/Password
FTP	Host + Port + Username/Password
Local Disk	Target directory path
SFTP / Azure / Dropbox / OneDrive etc.	Select the type, fill in required fields; advanced options are collapsible

For Chinese cloud providers, just enter Region and AccessKey — the system auto-assembles the Endpoint. Rclone-type configs separate required fields from optional advanced options (collapsed by default).

Click Test Connection to verify.

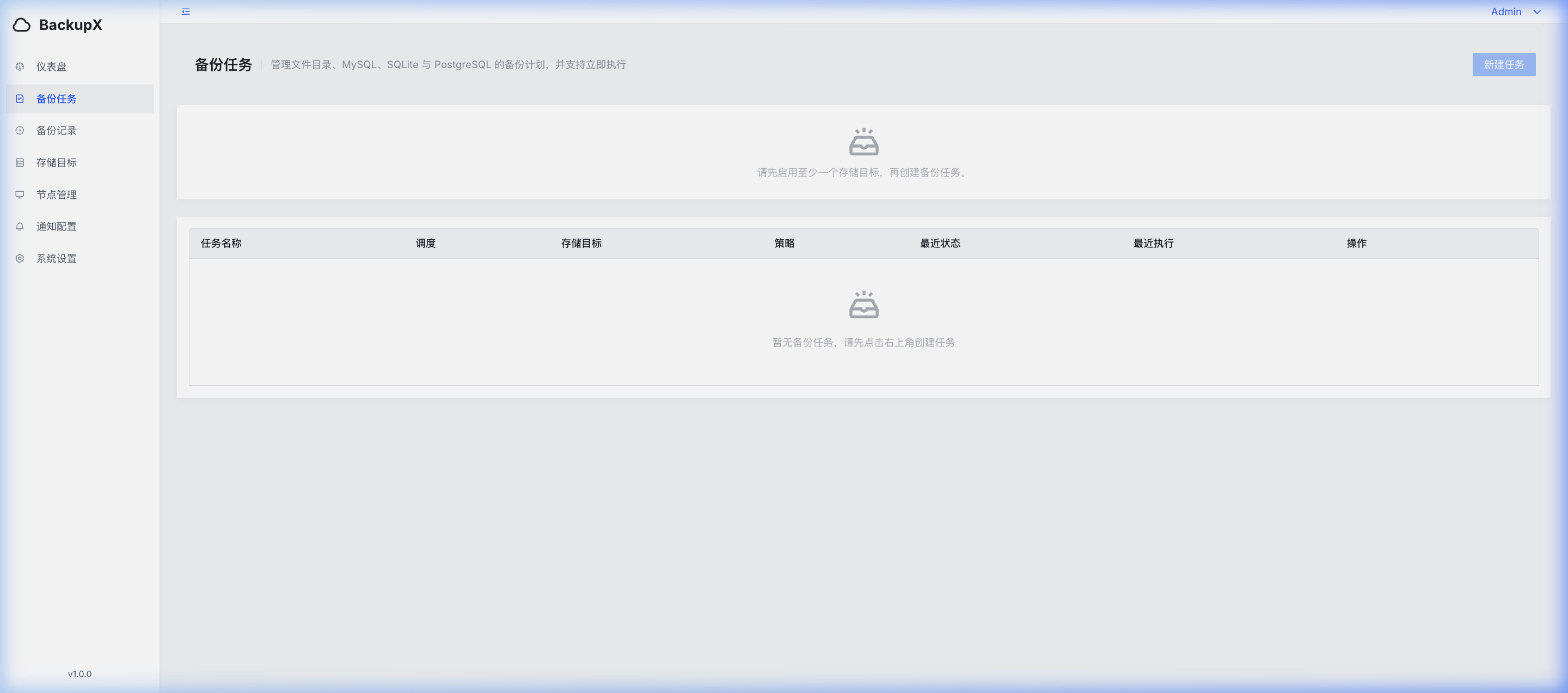

4. Create a Backup Task

Go to Backup Tasks → Create, complete 3 steps:

1. Basic Info — Task name, backup type, Cron expression (leave empty for manual-only)
2. Source Config — File backup: select source paths (supports multiple); Database: enter connection info
3. Storage & Policy — Select storage target(s) (supports multiple), compression, retention days, encryption toggle

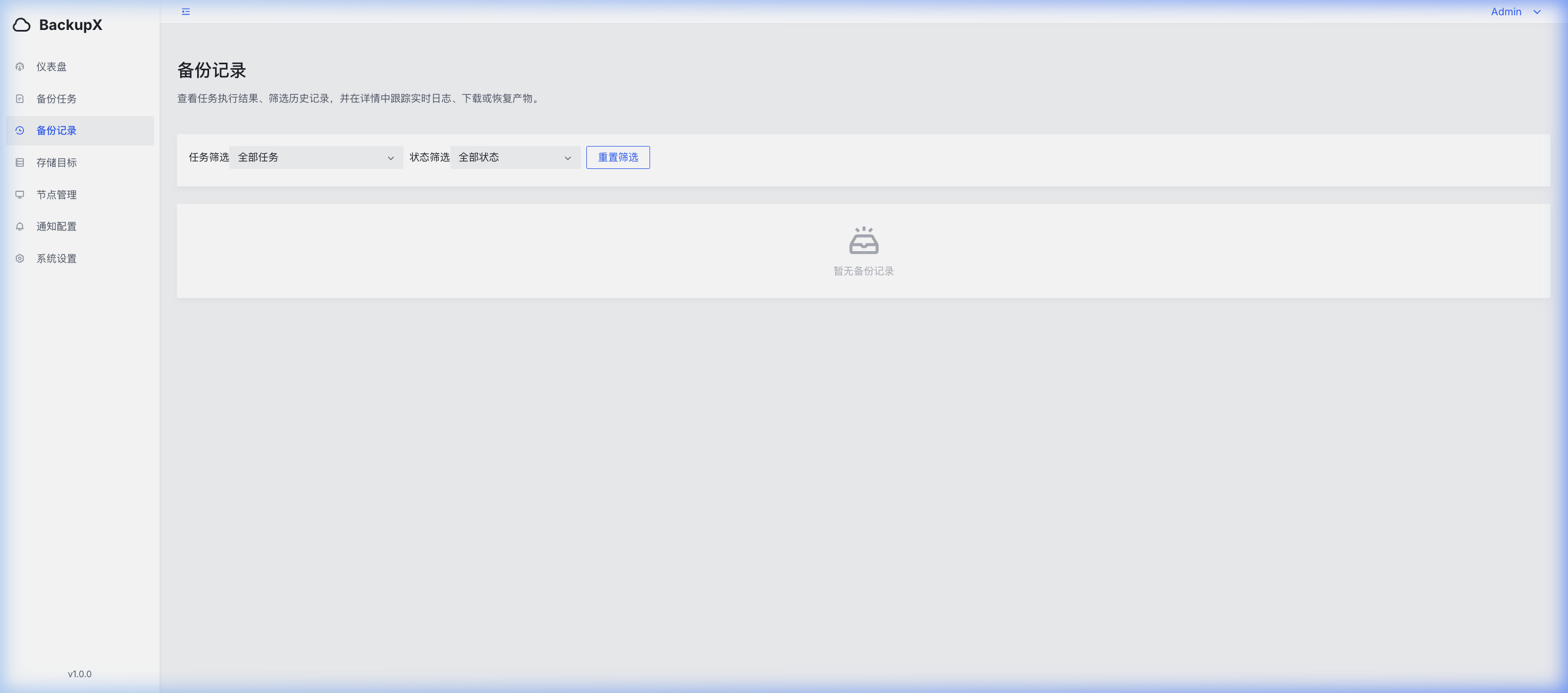

Save, then click Run Now to test. View real-time logs in Backup Records.

Deleting a backup task automatically cleans up remote storage files while preserving backup records for audit purposes.

5. Set Up Notifications (Optional)

Go to Notifications to configure Email, Webhook, or Telegram alerts for backup success/failure.

---

Deployment Guide

Docker

docker compose up -d     # Using the docker-compose.yml above

Mount host directories for file backup (add to volumes in docker-compose.yml):

volumes:
  - backupx-data:/app/data
  - /var/www:/mnt/www:ro
  - /etc/nginx:/mnt/nginx-conf:ro

Override config via environment variables:

environment:
  - TZ=Asia/Shanghai
  - BACKUPX_LOG_LEVEL=debug
  - BACKUPX_BACKUP_MAX_CONCURRENT=4

To upgrade: go to System Settings, click "Check for Updates" to see if a new version is available, then run docker compose pull && docker compose up -d.

Bare Metal

# From pre-built package
tar xzf backupx-v*-linux-amd64.tar.gz && cd backupx-*
sudo ./install.sh

# Or from source
make build
sudo ./deploy/install.sh

The install script creates a system user, installs to /opt/backupx/, configures systemd, and sets up Nginx reverse proxy.

Nginx Reverse Proxy (bare metal)

server {
    listen 80;
    server_name backup.example.com;

    location / {
        root /opt/backupx/web;
        try_files $uri $uri/ /index.html;
    }

    location /api/ {
        proxy_pass http://127.0.0.1:8340;
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
    }
}

Configuration

Config file: ./config.yaml (or override with BACKUPX_ prefixed env vars):

server:
  port: 8340
database:
  path: "./data/backupx.db"
security:
  jwt_secret: ""          # Auto-generated and persisted to DB
  encryption_key: ""      # Auto-generated
backup:
  temp_dir: "/tmp/backupx"
  max_concurrent: 2
log:
  level: "info"           # debug | info | warn | error
  file: "./data/backupx.log"

Password Reset

# Bare metal
./backupx reset-password --username admin --password newpass123

# Docker
docker exec -it backupx /app/bin/backupx reset-password --username admin --password newpass123

---

SAP HANA Support

BackupX offers two SAP HANA backup modes — pick whichever fits:

Mode 1: hdbsql Runner (Web-console managed)

Create a SAP HANA backup task in the Web console. The backend runs hdbsql to perform backups, suitable for BackupX-scheduled recurring jobs.

Source configuration supports:

Field	Options	Description
Backup type	data / log	Data or log backup
Backup level	full / incremental / differential	Auto-disabled for log backups
Parallel channels	1 ~ 32	BACKUP DATA USING FILE ('c1','c2',...) parallel paths
Retry count	1 ~ 10	Exponential backoff (5s × attempt²)
Instance number	Optional	Inferred from port or manually specified

Mode 2: Backint Protocol Agent (HANA native)

BackupX ships a built-in Backint Agent. SAP HANA calls it via native BACKUP DATA USING BACKINT syntax, and data is routed automatically to BackupX storage targets (S3 / OSS / COS / WebDAV / 70+ backends).

1. Prepare parameter file /opt/backupx/backint_params.ini:

#STORAGE_TYPE = s3
#STORAGE_CONFIG_JSON = /opt/backupx/storage.json
#PARALLEL_FACTOR = 4
#COMPRESS = true
#KEY_PREFIX = hana-backup
#CATALOG_DB = /opt/backupx/backint_catalog.db
#LOG_FILE = /var/log/backupx/backint.log

2. Prepare storage config /opt/backupx/storage.json (same schema as BackupX storage targets):

{
  "endpoint": "https://s3.amazonaws.com",
  "region": "us-east-1",
  "bucket": "hana-prod",
  "accessKeyId": "AKIA...",
  "secretAccessKey": "..."
}

3. Create the hdbbackint symlink:

ln -s /opt/backupx/backupx /usr/sap/<SID>/SYS/global/hdb/opt/hdbbackint

4. Enable in HANA global.ini:

[backup]
data_backup_using_backint = true
catalog_backup_using_backint = true
log_backup_using_backint = true
data_backup_parameter_file = /opt/backupx/backint_params.ini
log_backup_parameter_file = /opt/backupx/backint_params.ini

5. Manual CLI invocation (for troubleshooting):

backupx backint -f backup  -i input.txt -o output.txt -p backint_params.ini
backupx backint -f restore -i input.txt -o output.txt -p backint_params.ini
backupx backint -f inquire -i input.txt -o output.txt -p backint_params.ini
backupx backint -f delete  -i input.txt -o output.txt -p backint_params.ini

The Backint Agent maintains an EBID ↔ object-key catalog in a local SQLite DB. All operations follow the SAP HANA Backint protocol (#PIPE / #SAVED / #RESTORED / #BACKUP / #NOTFOUND / #DELETED / #ERROR).

---

Multi-Node Cluster

BackupX supports Master-Agent mode for managing multiple servers. Backup tasks can be routed to specific nodes — the Agent runs the backup locally and uploads straight to storage backends.

Architecture

[Web Console] ←── JWT ──→ [Master (backupx)]
                              ↑  ↓
                              │  │ HTTP long-poll (token auth)
                              │  ↓
                         [Agent (backupx agent)]  ← runs on remote host
                              ↓
                          [70+ Storage Backends]

• Protocol: HTTP long-polling; the Agent initiates all connections — Master never needs reverse access
• Heartbeat: Agent reports every 15s; Master marks nodes offline after 45s of silence
• Dispatch: Master persists run_task commands to a queue; Agent polls and claims them
• Execution: Agent reuses the same BackupRunner (file / mysql / postgresql / sqlite / saphana) and uploads directly to storage
• Security: Each node gets its own token; the Agent never holds the Master's JWT secret or encryption key

Walkthrough

1. Create a node on Master and copy the token

Web Console → Node Management → Add Node. The dialog shows a 64-byte hex token once — keep it safe.

2. Deploy the Agent on a remote host

Upload the BackupX binary (same file as Master) to the target host, then start the Agent:

# Option A: CLI flags
backupx agent --master http://master.example.com:8340 --token <token>

# Option B: config file
cat > /etc/backupx/agent.yaml <<EOF
master: http://master.example.com:8340
token: <token>
heartbeatInterval: 15s
pollInterval: 5s
tempDir: /var/lib/backupx-agent
EOF
backupx agent --config /etc/backupx/agent.yaml

# Option C: environment variables (Docker / systemd-friendly)
BACKUPX_AGENT_MASTER=http://master.example.com:8340 \
BACKUPX_AGENT_TOKEN=<token> \
backupx agent

Once connected, the node appears as online in the list.

3. Create a task routed to that node

In the Backup Tasks page, pick the target node when creating the task. When triggered:

• Local / unassigned (nodeId=0) tasks run in-process on Master
• Remote-node tasks are enqueued → Agent claims → Agent runs locally → uploads → reports back

Limitations

• No encrypted backups via Agent: the Agent doesn't hold Master's AES-256 key. Tasks with encrypt: true will fail if routed to an Agent
• Directory browse timeout: remote dir listing is a synchronous RPC through the queue; default 15s timeout
• Command timeout: claimed-but-unfinished commands are marked timed out after 10 minutes

CLI Reference

backupx agent --help
  -master string    Master URL
  -token string     Agent auth token
  -config string    YAML config path (takes precedence over env)
  -temp-dir string  Local temp directory (default /tmp/backupx-agent)
  -insecure-tls     Skip TLS verification (testing only)

---

Development

Requirements: Go >= 1.25 · Node.js >= 20 · npm

# Dev mode
make dev-server          # Terminal 1: backend (:8340)
make dev-web             # Terminal 2: frontend (Vite HMR)

# Test
make test                # Run all tests

# Build
make build               # Build frontend + backend
make docker              # Docker build
make docker-cn           # Docker build with China mirrors

Release

git tag v1.4.3 && git push --tags
# GitHub Actions: compile dual-arch binaries → publish GitHub Release → push Docker Hub image

Or manually trigger the Release workflow from GitHub Actions page.

---

API Reference

All endpoints prefixed with /api, authenticated via JWT Bearer Token.

Module	Endpoint	Description
Auth	POST /auth/setup	Initialize admin
	POST /auth/login	Login
	PUT /auth/password	Change password
Backup Tasks	GET|POST /backup/tasks	List / Create
	GET|PUT|DELETE /backup/tasks/:id	Detail / Update / Delete
	PUT /backup/tasks/:id/toggle	Enable / Disable
	POST /backup/tasks/:id/run	Manual run
Backup Records	GET /backup/records	List (with filter)
	GET /backup/records/:id/logs/stream	Real-time logs (SSE)
	GET /backup/records/:id/download	Download
	POST /backup/records/:id/restore	Restore
Storage Targets	GET|POST /storage-targets	List / Add
	POST /storage-targets/test	Test connection
	GET /storage-targets/rclone/backends	Rclone backend list
Nodes	GET|POST /nodes	List / Add
	PUT /nodes/:id	Edit node
	GET /nodes/:id/fs/list	Directory browser
	POST /agent/heartbeat	Agent heartbeat (Token auth)
Notifications	GET|POST /notifications	List / Add

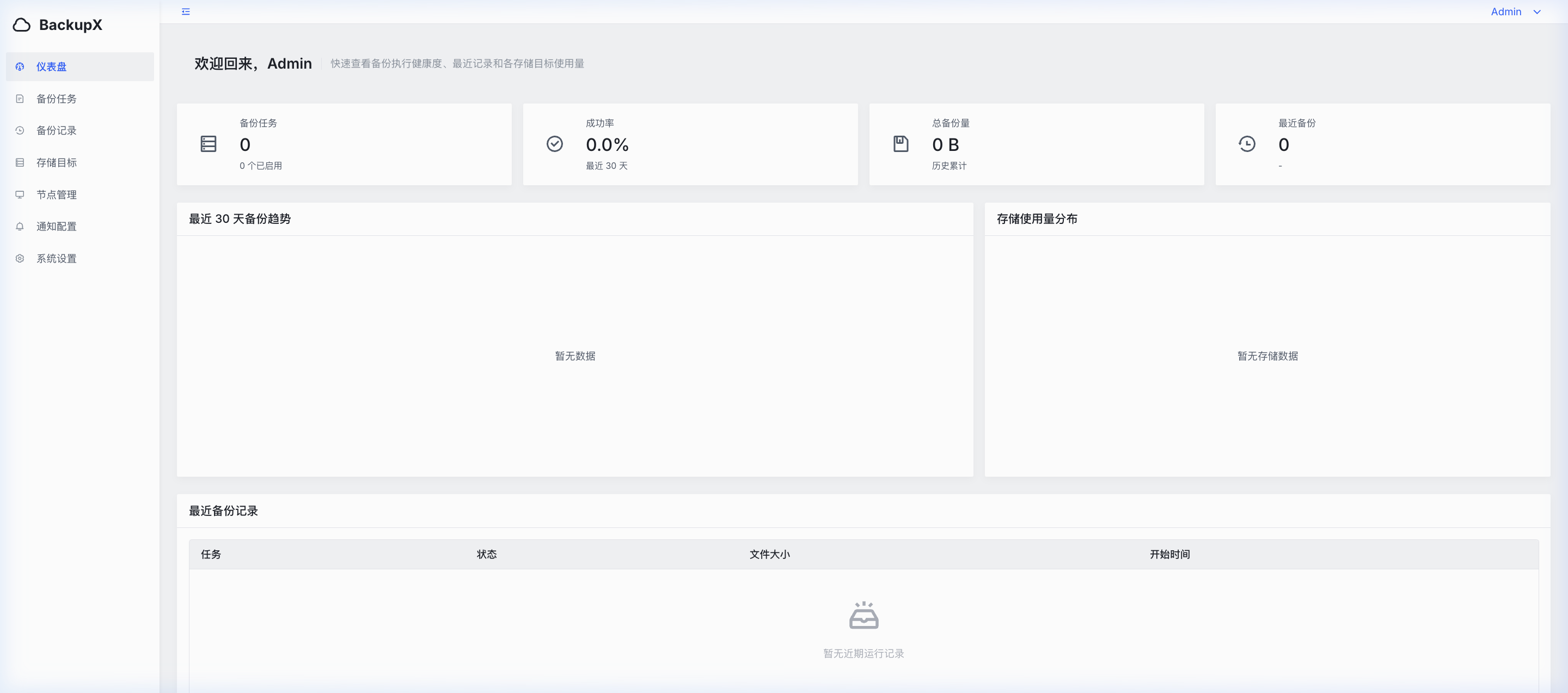

Dashboard	GET /dashboard/stats	Overview stats
Audit Logs	GET /audit-logs	Operation audit
System	GET /system/info	System info
	GET /system/update-check	Check for updates

---

Tech Stack

Component	Technology
Backend	Go · Gin · GORM · SQLite · robfig/cron · rclone
Frontend	React 18 · TypeScript · ArcoDesign · Vite · Zustand · ECharts
Storage	rclone (70+ backends) · AWS SDK v2 · Google Drive API v3
Security	JWT · bcrypt · AES-256-GCM

Contributing

Issues and Pull Requests are welcome!

License

Apache License 2.0
