English | 中文

BackupX

Self-hosted Server Backup Management Platform
One binary, one command — manage all your server backups.

---

Highlights

Capability	Details
Backup Types	Files/Directories (multi-source), MySQL, PostgreSQL, SQLite, SAP HANA
Storage Backends	Alibaba Cloud OSS, Tencent COS, Qiniu Kodo, S3-compatible (AWS/MinIO/R2), Google Drive, WebDAV, FTP/FTPS, Local Disk
Scheduling	Cron-based scheduling + visual editor + auto-retention policy (by days/count)
Multi-Node	Master-Agent cluster for managing backups across multiple servers
Security	JWT + bcrypt + AES-256-GCM encrypted config + optional backup encryption + audit logs
Notifications	Email / Webhook / Telegram — push on success or failure
Deployment	Single binary + embedded SQLite, Docker one-click, zero external dependencies

---

Quick Start

1. Install

Docker (recommended, no clone needed):

# Create a docker-compose.yml then start
docker compose up -d

# Or run directly
docker run -d --name backupx -p 8340:8340 -v backupx-data:/app/data awuqing/backupx:latest

Docker Hub: awuqing/backupx — supports linux/amd64 and linux/arm64.

docker-compose.yml reference

services:
  backupx:
    image: awuqing/backupx:latest
    container_name: backupx
    restart: unless-stopped
    ports:
      - "8340:8340"
    volumes:
      - backupx-data:/app/data
      # Mount host directories to back up (add as needed):
      # - /var/www:/mnt/www:ro
      # - /etc/nginx:/mnt/nginx-conf:ro
    environment:
      - TZ=Asia/Shanghai

volumes:
  backupx-data:

Pre-built binaries (bare metal):

Download from Releases:

tar xzf backupx-v*-linux-amd64.tar.gz && cd backupx-*
sudo ./install.sh        # Auto-configures systemd + Nginx

Build from source:

git clone https://github.com/Awuqing/BackupX.git && cd BackupX
make build               # Build frontend + backend
make docker-cn           # Or Docker build with China mirrors (goproxy.cn / npmmirror / Aliyun apk)

2. Open the Console

Visit http://your-server:8340 in your browser. First-time access guides you through admin account creation.

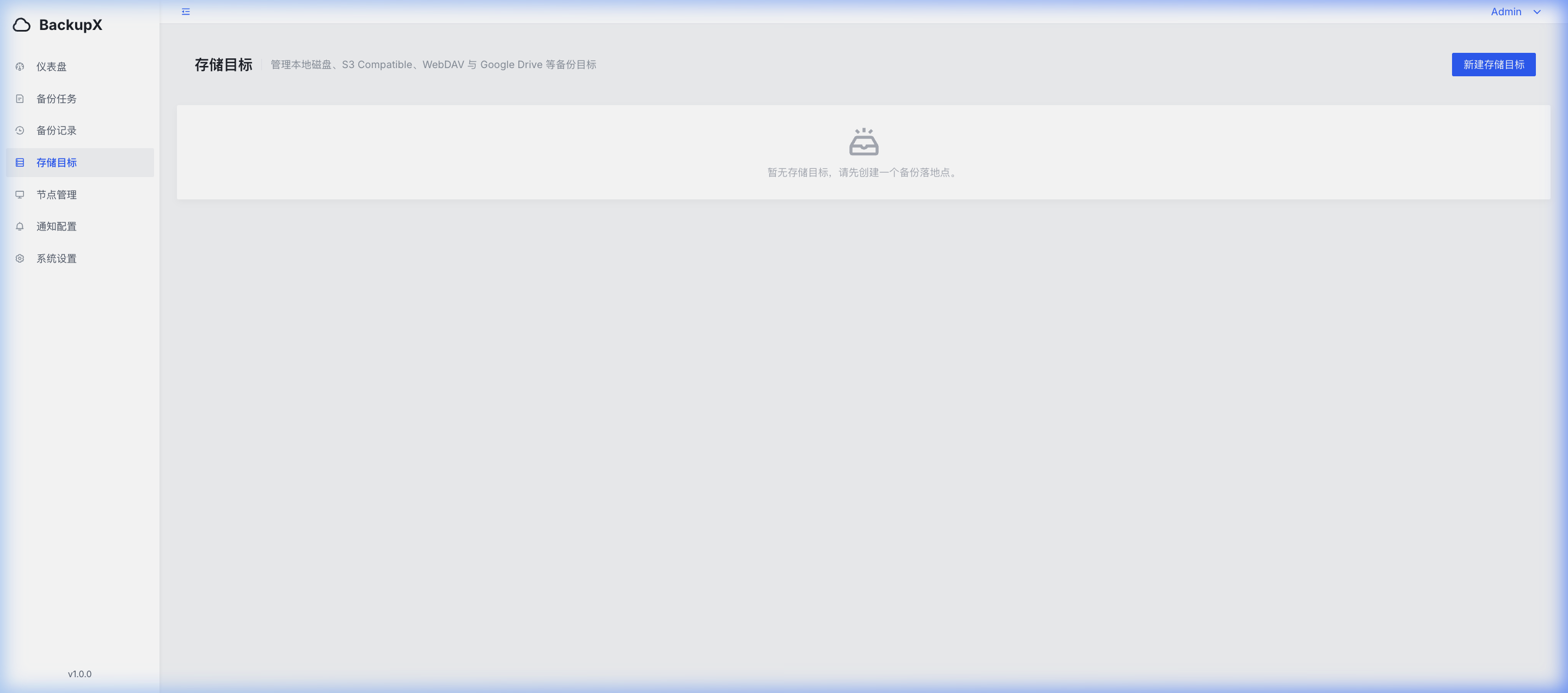

3. Add a Storage Target

Go to Storage Targets → Add, choose a storage type and enter credentials:

Storage Type	Required Fields
Alibaba Cloud OSS	Region + AccessKey ID/Secret + Bucket
Tencent Cloud COS	Region + SecretId/SecretKey + Bucket (name-appid)
Qiniu Cloud Kodo	Region + AccessKey/SecretKey + Bucket
S3 Compatible	Endpoint + AccessKey + Bucket
Google Drive	Client ID/Secret → click Authorize for OAuth
WebDAV	Server URL + Username/Password
FTP	Host + Port + Username/Password
Local Disk	Target directory path

Click Test Connection to verify.

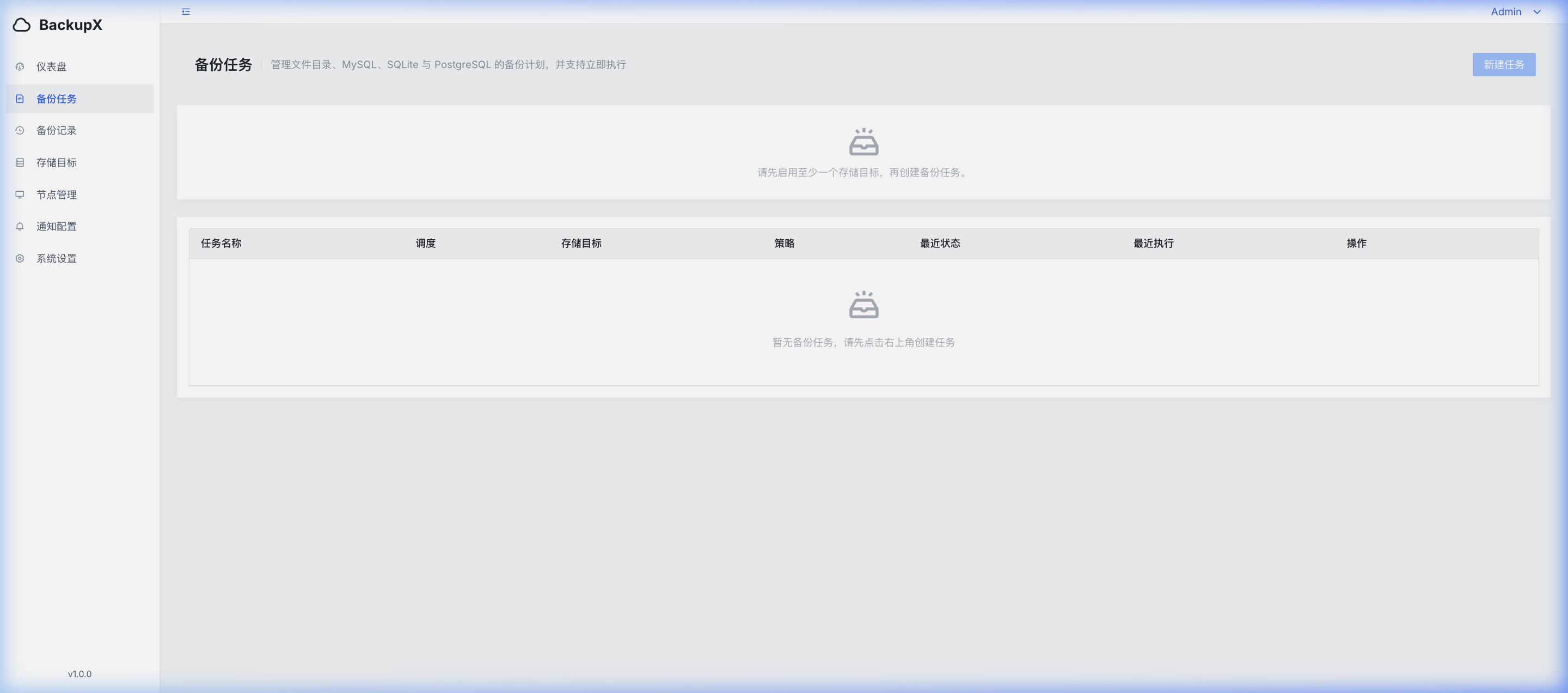

4. Create a Backup Task

Go to Backup Tasks → Create, complete 3 steps:

1. Basic Info — Task name, backup type, Cron expression (leave empty for manual-only)
2. Source Config — File backup: select source paths (supports multiple); Database: enter connection info
3. Storage & Policy — Select storage target(s), compression, retention days, encryption toggle

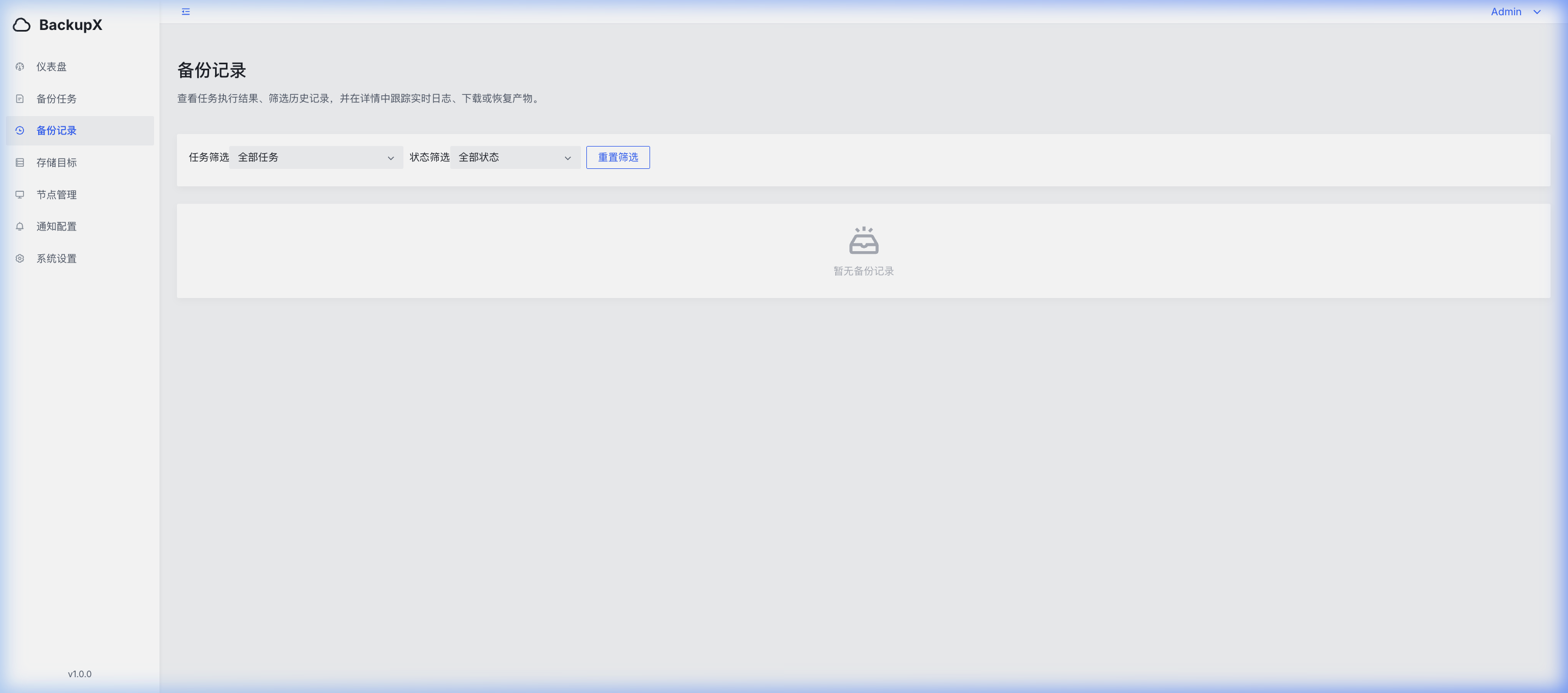

Save, then click Run Now to test. View real-time logs in Backup Records.

5. Set Up Notifications (Optional)

Go to Notifications to configure Email, Webhook, or Telegram alerts for backup success/failure.

---

Deployment Guide

Docker

docker compose up -d     # Using the docker-compose.yml above

Mount host directories for file backup (add to volumes in docker-compose.yml):

volumes:
  - backupx-data:/app/data
  - /var/www:/mnt/www:ro
  - /etc/nginx:/mnt/nginx-conf:ro

Override config via environment variables:

environment:
  - TZ=Asia/Shanghai
  - BACKUPX_LOG_LEVEL=debug
  - BACKUPX_BACKUP_MAX_CONCURRENT=4

Bare Metal

# From pre-built package
tar xzf backupx-v*-linux-amd64.tar.gz && cd backupx-*
sudo ./install.sh

# Or from source
make build
sudo ./deploy/install.sh

The install script creates a system user, installs to /opt/backupx/, configures systemd, and sets up Nginx reverse proxy.

Nginx Reverse Proxy (bare metal)

server {
    listen 80;
    server_name backup.example.com;

    location / {
        root /opt/backupx/web;
        try_files $uri $uri/ /index.html;
    }

    location /api/ {
        proxy_pass http://127.0.0.1:8340;
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
    }
}

Configuration

Config file: ./config.yaml (or override with BACKUPX_ prefixed env vars):

server:
  port: 8340
database:
  path: "./data/backupx.db"
security:
  jwt_secret: ""          # Auto-generated and persisted to DB
  encryption_key: ""      # Auto-generated
backup:
  temp_dir: "/tmp/backupx"
  max_concurrent: 2
log:
  level: "info"           # debug | info | warn | error
  file: "./data/backupx.log"

Password Reset

# Bare metal
./backupx reset-password --username admin --password newpass123

# Docker
docker exec -it backupx /app/bin/backupx reset-password --username admin --password newpass123

---

Multi-Node Cluster

BackupX supports Master-Agent mode for managing multiple servers:

1. Web Console → Node Management → Add Node — system generates a Token
2. Deploy Agent on remote server, connect using the Token
3. Create backup tasks and assign to specific nodes — Master dispatches automatically

The visual directory browser lets you pick directories on remote Agent nodes — no manual path typing.

---

Development

Requirements: Go >= 1.25 · Node.js >= 20 · npm

# Dev mode
make dev-server          # Terminal 1: backend (:8340)
make dev-web             # Terminal 2: frontend (Vite HMR)

# Test
make test                # Run all tests

# Build
make build               # Build frontend + backend
make docker              # Docker build
make docker-cn           # Docker build with China mirrors

Release

git tag v1.2.3 && git push --tags
# GitHub Actions: compile dual-arch binaries → publish GitHub Release → push Docker Hub image

Or manually trigger the Release workflow from GitHub Actions page.

---

API Reference

All endpoints prefixed with /api, authenticated via JWT Bearer Token.

Module	Endpoint	Description
Auth	POST /auth/setup	Initialize admin
	POST /auth/login	Login
	PUT /auth/password	Change password
Backup Tasks	GET|POST /backup/tasks	List / Create
	GET|PUT|DELETE /backup/tasks/:id	Detail / Update / Delete
	PUT /backup/tasks/:id/toggle	Enable / Disable
	POST /backup/tasks/:id/run	Manual run
Backup Records	GET /backup/records	List (with filter)
	GET /backup/records/:id/logs/stream	Real-time logs (SSE)
	GET /backup/records/:id/download	Download
	POST /backup/records/:id/restore	Restore
Storage Targets	GET|POST /storage-targets	List / Add
	POST /storage-targets/test	Test connection
Nodes	GET|POST /nodes	List / Add
	GET /nodes/:id/fs/list	Directory browser
Notifications	GET|POST /notifications	List / Add

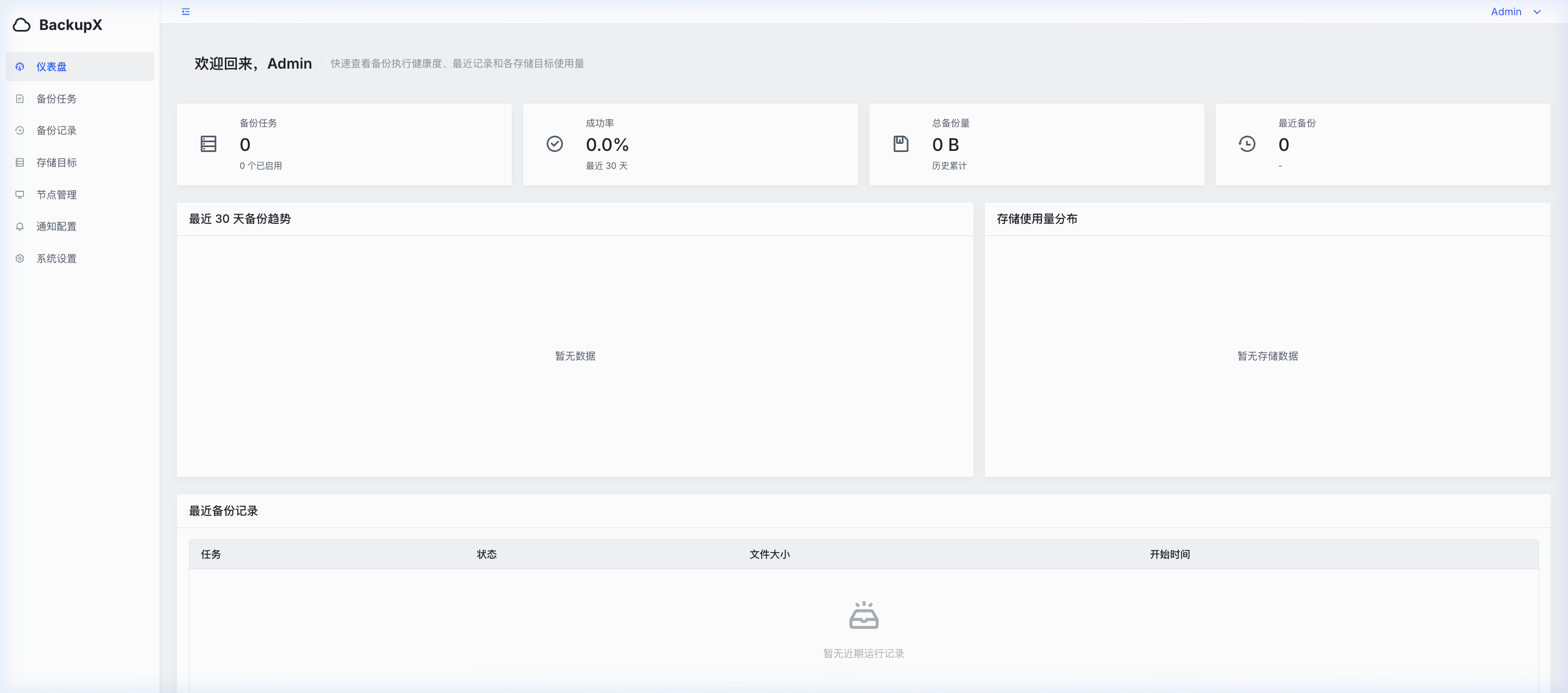

Dashboard	GET /dashboard/stats	Overview stats
Audit Logs	GET /audit-logs	Operation audit
System	GET /system/info	System info

---

Tech Stack

Component	Technology
Backend	Go · Gin · GORM · SQLite · robfig/cron
Frontend	React 18 · TypeScript · ArcoDesign · Vite · Zustand · ECharts
Storage	AWS SDK v2 · Google Drive API v3 · gowebdav · jlaffaye/ftp
Security	JWT · bcrypt · AES-256-GCM

Contributing

Issues and Pull Requests are welcome!

License

Apache License 2.0
